We will Repair , Refurbish and/or make New Crystal Assemblies at Original OEM specifications.

We also build to custom designs specifications.

    If you have any Assemblies that need Repair or
Refurbished send them to us and we will make the
repairs at a fraction of the cost of a new unit .

    If your need is for new Assemblies we do that also , We
will make them to the Original OEM specifications or if you
have a custom design no problem we do that as well.
Trade in discount:
If your need is for new Assemblies send your old
one or any other Assemblies in for a Credit.

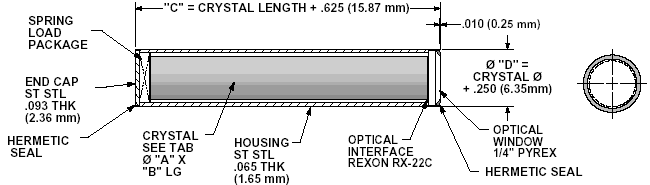

OUTLINE OF STANDARD RUGGEDIZED SIZES

DWG NUMBER

CRYSTAL Ø "A"

DIAMETER "D" SUFFIX XTAL LG "B" LENGTH "C"

SDB9708291-1

0.500 (12.7mm) 0.750 (19.1mm) -_A  1.00 (25.40mm) 1.625 (41.27mm)
SDB9708291-2 0.750 (19.1mm)

1.000 (25.4mm)

-_B  1.50 (38.10mm) 2.125 (53.98mm)
SDB9708291-3 0.875 (22.2mm) 1.125 (28.6mm) -_C  2.00 (50.80mm) 2.625 (66.68mm)
SDB9708291-4 1.000 (25.4mm) 1.250 (31.8mm) -_D  2.25 (57.15mm) 2.875 (73.03mm)
SDB9708291-5 1.125 (28.6mm) 1.375 (34.9mm) -_E  3.00 (76.20mm) 3.625 (92.08mm)
SDB9708291-6 1.250 (31.8mm) 1.500 (38.1mm) -_F  4.00 (101.6mm) 4.625 (117.48mm)
SDB9708291-7 1.375 (34.9mm) 1.625 (41.3mm) -_G  5.00 (127.0mm) 5.625 (142.88mm)
SDB9708291-8 1.500 (38.1mm) 1.750 (44.5mm) -_H  6.00 (152.4mm) 6.625 (168.28mm)
SDB9708291-9 1.750 (44.5mm) 2.000 (50.8mm) -_I

 8.00 (203.2mm)

8.625 (219.08mm)
SDB9708291-10 2.000 (50.8mm) 2.250 (57.2mm) -_J 10.00 (254.0mm) 10.625 (269.88mm)
-_K 12.00 (304.8mm) 12.625 (320.68mm)
