Description: General Specifications:

Our Type X Standard assemblies are a family of scintillation detectors characterized by having a right circular cylinder geometry and one open face. Each Type X detector is ready for coupling to a photomultiplier tube of your choice.

The detector is encased in a metal housing with a glass optical window at one end. A variety of crystal materials and construction methods are available. Specifications which apply to all Type X detectors are shown in the general specifications table.

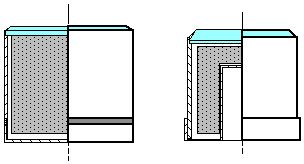

The Type X Family includes end-well, side-well, thin window assemblies, and gamma camera crystal styles, in addition to the popular solid cylinder styles.

Optical Window

1/8" UV Transmitting Glass
Reflector Aluminum Oxide, packed power, 1/16" thick, 67 mg/cm^2
Entrance Window .020" Aluminum, 137 mg/cm^2
Housing Material Aluminum, standard Stainless Steel, Optional
Housing Thickness 1/32"
Housing Diameter Crystal Diameter + 0.22"
Housing Length Crystal Length + 0.28"
Features:

Type X detectors are supplied ready for interfacing to a photomultiplier tube of your choice.

Choose from a variety of crystal materials, sizes, styles and options.

Use a series of Type X detectors with one or more basic photomultiplier tubes.

These detectors are available in solid, end-well, and side-well construction.

Thin window assemblies are available for detection of x-rays between 3 and 100 kev. Dimensions range up to 3" diameter and 0.236" (6 mm) thickness. Entrance window is either 0.001" thick aluminum foil, 0.005" or 0.010" thick  beryllium foil options.

Also see:

Gamma Camera Crystals

 Ruggedized  Assemblies



RX-688 Optical Coupling Grease or RX-22P Optical Interface Compound is recommend for interfacing the Type X detectors to a photomultiplier tube.
